- Built-in Circular polarization antenna, writing & reading tag easily.
- Delicate and compact design, more friendly with end users.
- IMPINJ RAIN RFID E310 or QM100 chipset offers lower cost & higher performance.
- USB mode / HID keyboard output mode, driver free, online upgrade.
- Support all mandatory ISO18000-6C commands. Widely used in the working station, document management, data issuing, retail cashier, access control, etc.

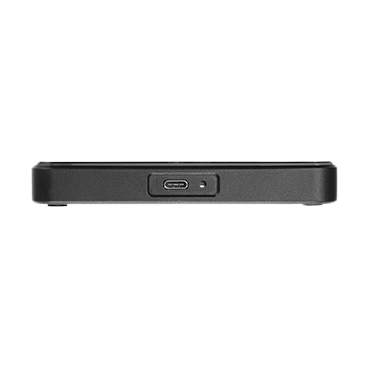

- USB type C, power supply, and communication interface.
- Function switch key, to manually switch between normal reader mode and HID keyboard mode.

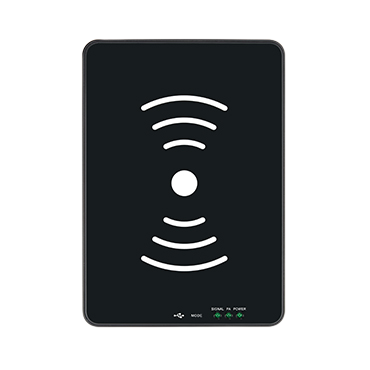

- SIGNAL– Read Tag Signal Indicator.
- PA– RF Signal Emitting Indicator.
- POWER — Power Indicator.
| Specifications | |
|---|---|
| Physical Characteristics | |
| Dimensions | 170*120*17mm |
| Weight | 0.25kg |
| Housing Material | Die-cast aluminum / ABS cover |
| Visual Status Indicator | Power, Status |
| RFID | |
| Air Protocol | ISO/IEC 18000-6C/EPC C1G2 |
| Frequency | EU: 865-868MHz (ETSI EN 302208) |
| Supportable /optional | Russian / Japan / Korea / Malaysia / Thailand / other customizable |
| Reading ＆ Writing Range | Reading Range: 0-1m Writing Range: 0-20cm |
| (According to Tag & Environment) | |
| Environmental | |
| Operating Temp. | -20 - +70°C |
| Storage Temp. | -40 - +85°C |
| Humidity | 5-90% non-condensing (+25℃) |
