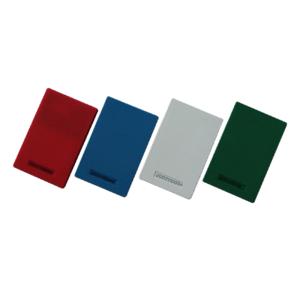

Ci-RT203 active RFID tag operates in the 2.4GHz ISM band, based on high IP 67 rating water-proof design, it can be widely used for outdoor applications like pallets tracking, boats management, asset tracking, tooling identification etc.
| Specifications | |
|---|---|
| TECHNICAL PARAMETER | |
| Working Frequency | ISM 2.4-2.48GHz |
| Modulation | GFSK |
| Rf Power | -13-+7dBm (default 0dBm) |
| Communication Speed | 1Mbps |
| Tag Id | 4 byte |
| Working Mode | Active |
| Signal Interval | 800ms (customizable from 100ms-60s) |
| Battery Life Time | 5-6 year (related to signal interval and RF power) |
| Battery Low Alarm | Yes, software |
| Reading Distance | 0-150m (open area, reader antenna type matters) |
| Dimension | 88 *57 *5mm |
| Weight | 25g |
| Material | ABS+PC |
| Working Temperature | -20°C~ +60°C |
| Storage Temperature | -25°C~ +65°C |
| Humidity | 5% ~ 95% |
| Ip Rating | IP67 |
