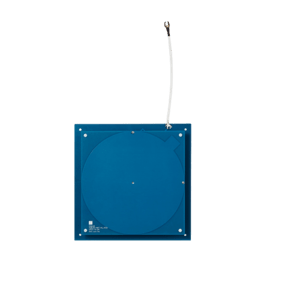

Low profile with high gain， reading distance range up to 15m
Maximum efficiency and performance across the entire frequency band
Seamlessly compatible with different brand RFID readers
Widely used in file cabinets, smart shelves, etc.
| Specifications | |
|---|---|
| Physical Specifications | |
| Weight: | 100g |
| Dimensions: | 200mmX200mmX22.5mm |
| Material: | PCB |
| Connector type / position: | SMA on the side |
| Operating Temperature: | -25 - +75°C |
| Storage Temperature: | -40 - +85°C |
| Electrical Specifications | |
| Frequency Range: | 840MHz~960MHz |
| Typical VSWR: | ≤1.5:1 |
| Gain: | 8dBi |
| H Beamwidth: | 70° |
| E Beamwidth: | 70° |
| Polarization: | Circular |
| Nominal Impedance: | 50 Ω |
